New Construction & Addition HVAC in Rio Grande City, TX

New construction HVAC in Rio Grande City works best when the heating and cooling system is drawn into the plans, not squeezed into whatever space is left after framing. The decisions made early on, such as where the air handler goes, how the ducts reach each bedroom and where the line set leaves the house, decide how quiet, even and affordable the system will be for the next fifteen years or more.

We design and install systems for new houses and room additions across Starr County, working with general contractors and with families building their own homes one stage at a time. That includes block homes, frame homes, second stories and attached additions. The work covers:

• Load calculation, equipment selection and duct design
• Sleeves, chases and the air handler closet planned with your framer or block crew
• Duct, line set, drain and thermostat wire rough-in, ready for inspection
• Equipment set, pad poured and start-up testing
• Mini-splits for additions that should not share the main system

When does the HVAC contractor need to be involved?

Earlier than most people expect. The table below shows what we need at each phase and why.

Load, equipment and duct design on paper first

Three ACCA methods guide a good design. Manual J works out how much heat each room gains on a design-day afternoon. Manual S uses that number to pick equipment that matches the load instead of overshooting it. Manual D sizes the ducts so every room gets the airflow it was calculated to need.

Choices made elsewhere in the build change the load. Low-E windows, deeper attic insulation, a radiant barrier or wider roof overhangs on the west side can let a smaller system do the job. If those details change mid-build, the numbers should be updated.

The local climate shapes the design too. A west-facing block wall soaks up afternoon sun and gives it back into the evening, and an unvented attic over a truss roof runs far hotter than the outdoor air, so ducts placed there need good insulation and tight joints. Job sites here are dusty with caliche, so duct boots stay capped until trim-out and the system never runs during drywall sanding.

Efficiency rules apply to new equipment too. Texas sits in the Department of Energy's Southeast region, where the floor for split-system air conditioners smaller than 45,000 Btu/h (about 3.75 tons) is 14.3 SEER2. New systems now use R-454B or R-32 refrigerant, and many indoor units built for these refrigerants include a leak sensor that has to be wired and tested at start-up.

Rough-in: ducts, line sets, drains and chases

Rough-in is everything that has to be in place before insulation and drywall close the walls and ceiling.

Ducts and returns

Supply ducts run from the air handler to a boot at each room. Returns matter just as much. A bedroom with the door closed and no return path will push back against the system and stay warm, so we plan either a return grille in that room or a transfer path.

Line set and drain

The copper line set and condensate drain need a route from the air handler to the outdoor unit and to a safe drain point.

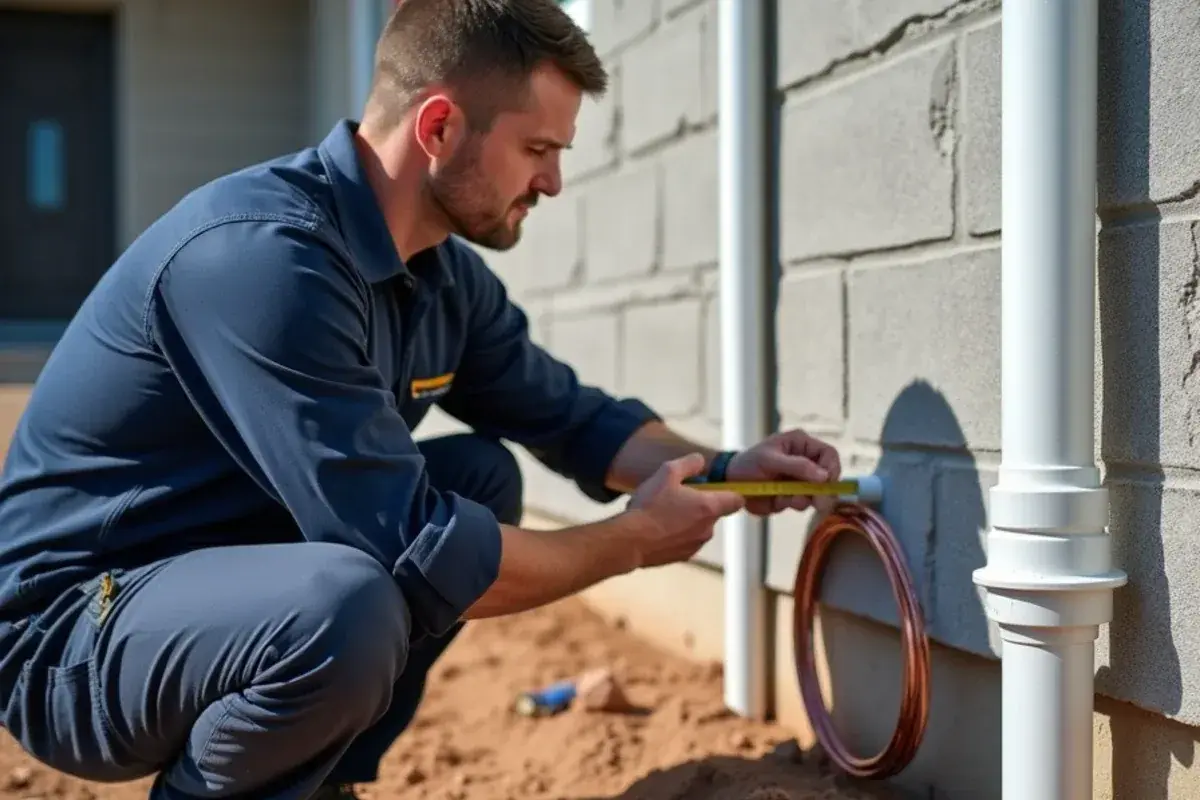

In concrete block homes there are no stud cavities to hide things in. Chases are created with soffits or furred walls, and sleeves are set through the block as the walls go up.

Closet and electrical coordination

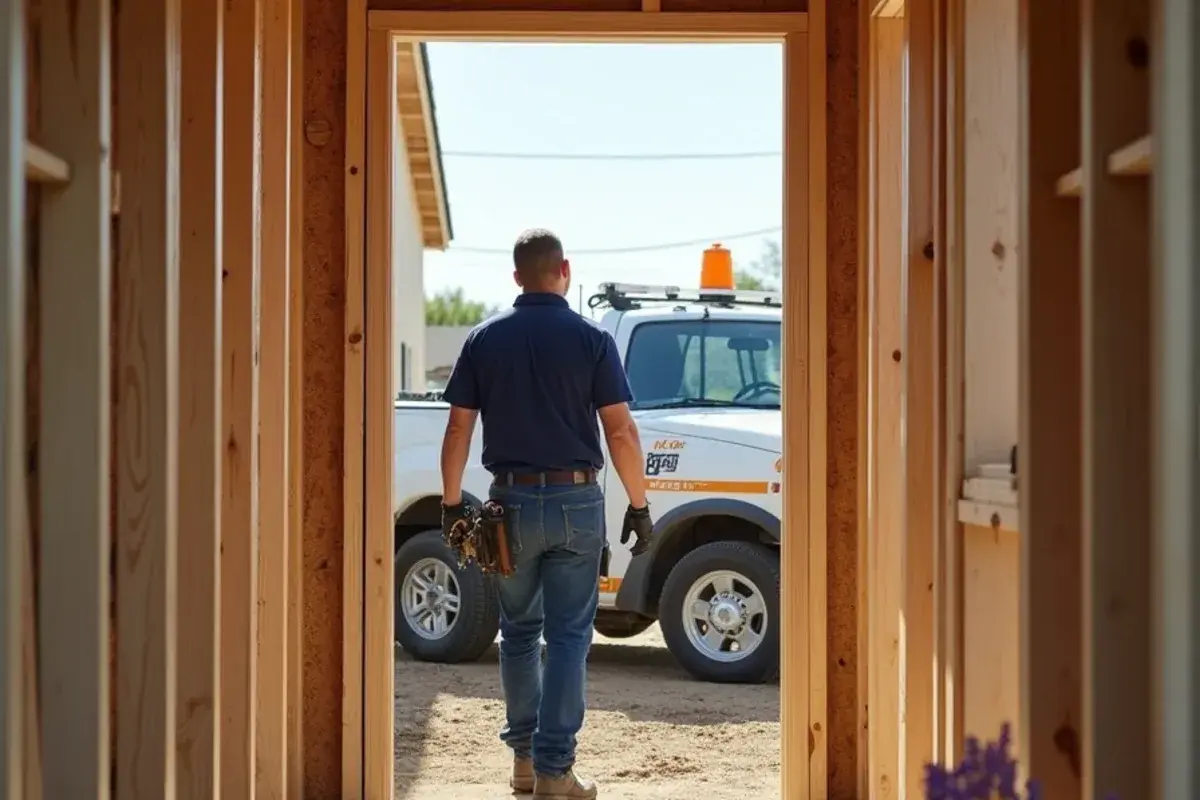

The air handler closet is framed to the size of the equipment plus service room, with the return opening cut to the design.

We coordinate with the electrician on the condenser circuit, the air handler circuit and the disconnect location.

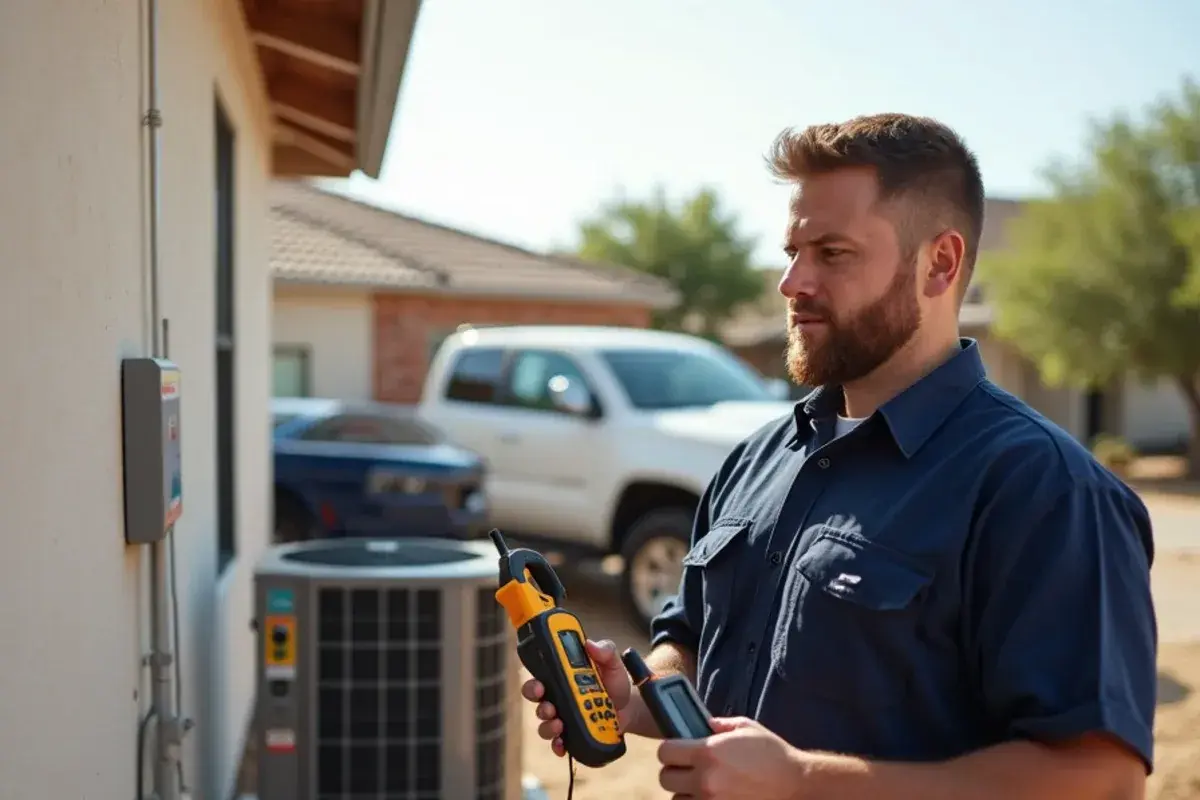

Start-up and commissioning

With finishes done, the system is checked against the design:

1. Pressure test the brazed line set with nitrogen and confirm it holds.
2. Pull a deep vacuum and watch the micron gauge to prove the circuit is dry and tight.
3. Charge by superheat or subcooling at the outdoor unit.
4. Measure airflow at each register and compare it with the duct design.
5. Test safeties, including the condensate float switch and any refrigerant leak sensor in the indoor unit.
6. Hand over model and serial numbers, settings and manufacturer registration details.

Room additions: extend the ducts or go ductless?

Tying a new room into an existing system sounds simple, but it only works when the existing unit has capacity to spare and the trunk line can carry more air. In many older homes it does not, and adding a run just spreads the same cooling thinner.

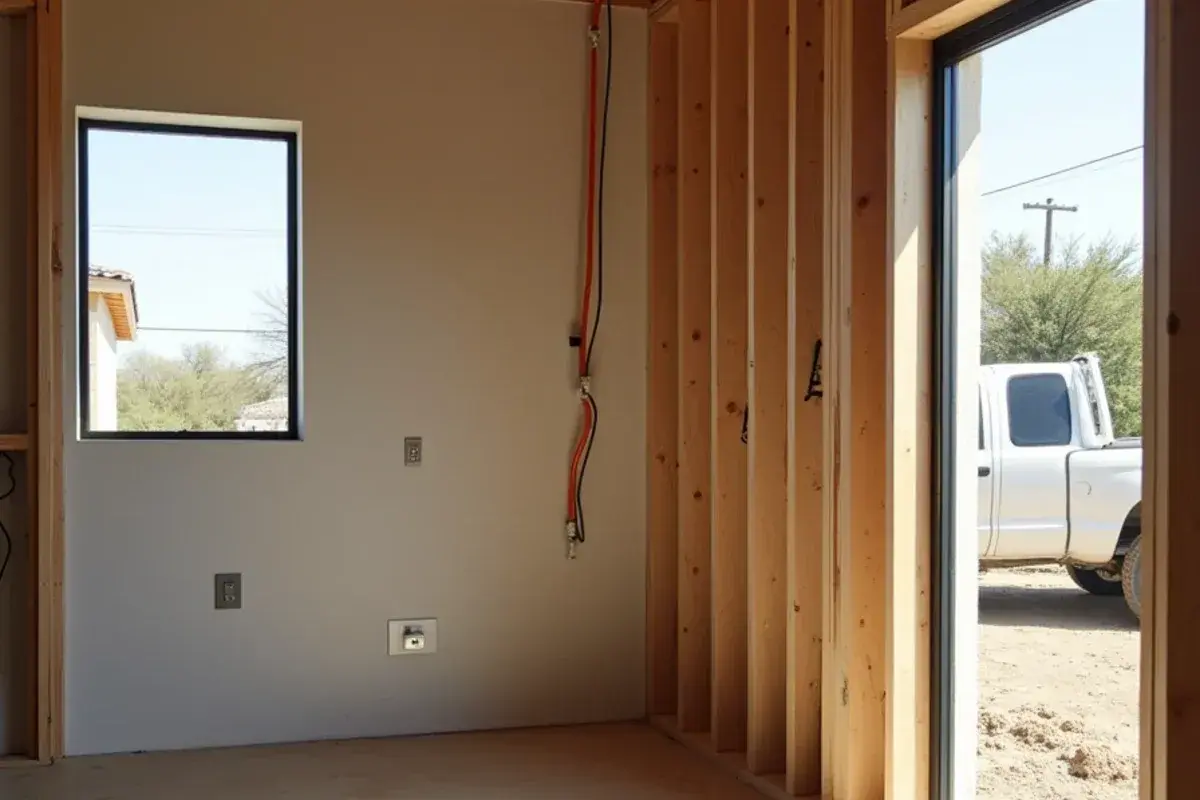

A ductless mini-split installation gives the addition its own head, outdoor unit and controls, and it leaves the main system alone. For a large addition or a second story, a separate small ducted system can also make sense. If you are planning the addition itself, our home construction and remodeling crew handles the building side.

Builders, owner-builders and permits

We work with general contractors on their schedule and with owner-builders who are pacing a project around work and budget. Either way, we will tell you what has to be ready before each visit so no one shows up to a site that is not prepared.

Permit and inspection requirements depend on where the lot is. Inside city limits, building permits and inspections are likely to apply, while rules in unincorporated parts of the county can differ, so check with the city or county office before work starts. Texas requires the HVAC contractor to hold a TDLR air conditioning licence, which anyone can look up on the TDLR website.

Lots within Rio Grande City go through plan review and inspections by the city's code enforcement office, which works to International Code Council standards. The statewide energy code for single-family homes, based on the 2015 International Residential Code, generally calls for a duct leakage test unless every duct sits inside conditioned space; ask your inspector how it is applied. Refrigerant work follows EPA Section 608.

Budget drivers on a new-home system

The cost of a new-construction system follows the design. The main variables are:

• Size and layout of the house, and how many systems or zones it needs.
• Air handler location, since an attic install and a hallway closet install need different work.
• Duct materials and the number of supply and return runs.
• Chases, soffits and sleeves, especially in block construction.
• Efficiency tier above the federal minimum.
• Ductless heads for additions or bonus rooms.
• The equipment pad and electrical coordination.

Most of the spread between two similar houses comes from design choices made before rough-in. An air handler in a conditioned closet with short runs costs less to build and run than one in a hot attic, and block walls add chase and sleeve work. A design reviewed early is cheaper than one corrected after drywall.

Once the system is running, the homeowner should register the equipment with the manufacturer to keep the full parts warranty. New ductwork built and sealed correctly at rough-in is far easier than fixing leaks in a finished attic later.
