AC Drain Line & Water Leak Repair in Rio Grande City, TX

An AC that is leaking water in Rio Grande City is usually telling you its drain is blocked. Cooling pulls moisture out of your indoor air, and that water, called condensate, runs into a pan and down a small pipe to the outside. When the pipe clogs, the water has nowhere to go but your floor, your ceiling or the wall under a mini-split. Most drain problems are quick to fix if they are caught before the water does damage.

A drain and water-leak visit covers:

• Finding where the water is coming from, not just mopping where it lands
• Clearing the line and trap from the outdoor outlet and flushing it clean
• Checking primary and overflow pans for rust and cracks
• Testing the float switch and any condensate pump
• Mini-split trays and drain hoses, including head level
• A run test to watch water leave the line

Where is the water showing up?

The location of the water points to the source:

Why condensate drains clog in Valley humidity

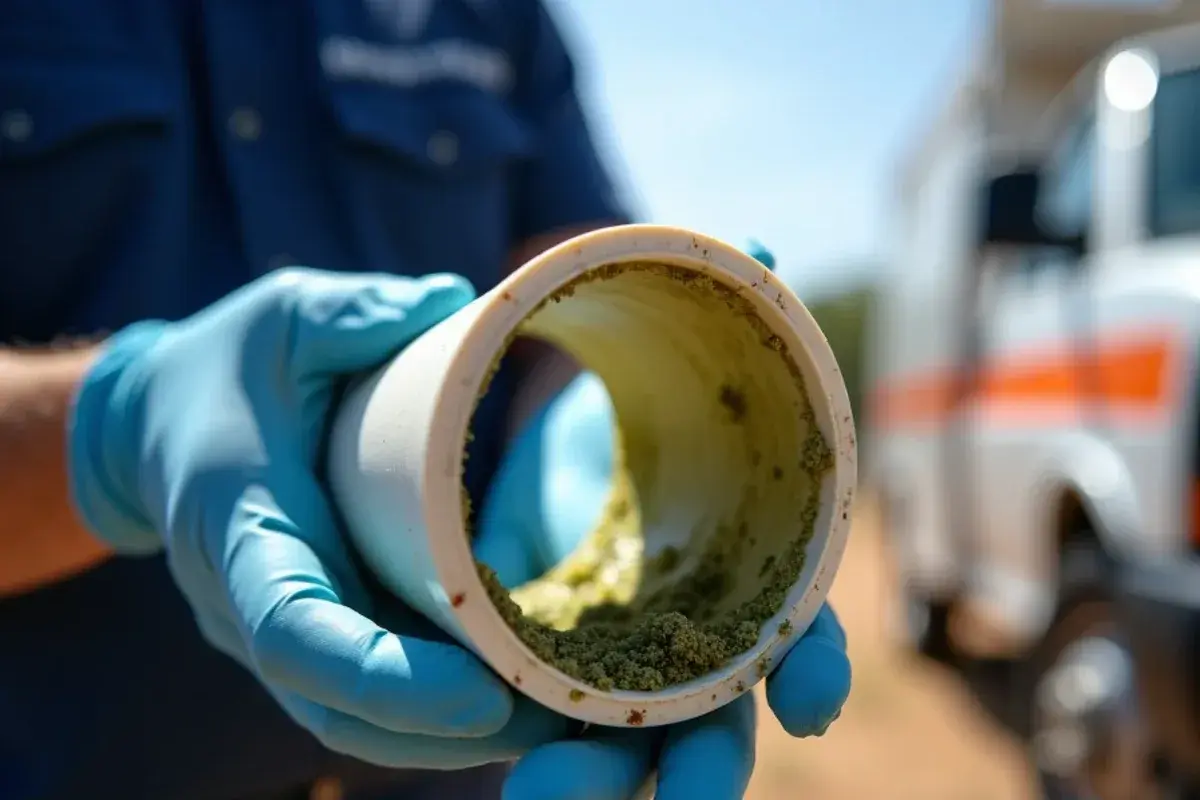

Humid stretches, especially closer to the river, mean the system pulls gallons of water a day out of the air. That steady flow of warm water feeds a slimy growth of algae and bacteria inside the line and trap. Add fine caliche dust and pet hair washed off the coil, and the slime turns into a plug.

Other culprits we find:

• Wasps, mud daubers and ants building inside the outdoor drain outlet
• Lines that sag between supports, letting sludge settle in the low spots
• A missing trap, or a trap that dries out and pulls air instead of draining
• Mulch or soil piled over the outlet
• A coil that froze from low refrigerant or a clogged filter, then melts faster than the drain can handle

Clearing the drain, step by step

1. Power off and protect. We switch the system off and put down towels and a pan.
2. Pull the clog out. A wet vacuum on the outdoor outlet draws the plug out of the line, which is gentler on old PVC joints than blowing pressure back toward the pan.
3. Flush and confirm. Water poured through the cleanout should flow steadily out the far end with no backup.
4. Check what fed the clog. A filthy filter, a frozen coil or a pan full of caliche grit means the line will plug again, so those get looked at before we call it fixed.
5. Fix the layout. Sagging sections get support, broken fittings are replaced, and a cleanout tee is added if there is no easy way to flush the line later.
6. Reset and test. The float switch resets, the system runs, and we watch water leave the line.

Overflow pans, float switches and condensate pumps

Pans

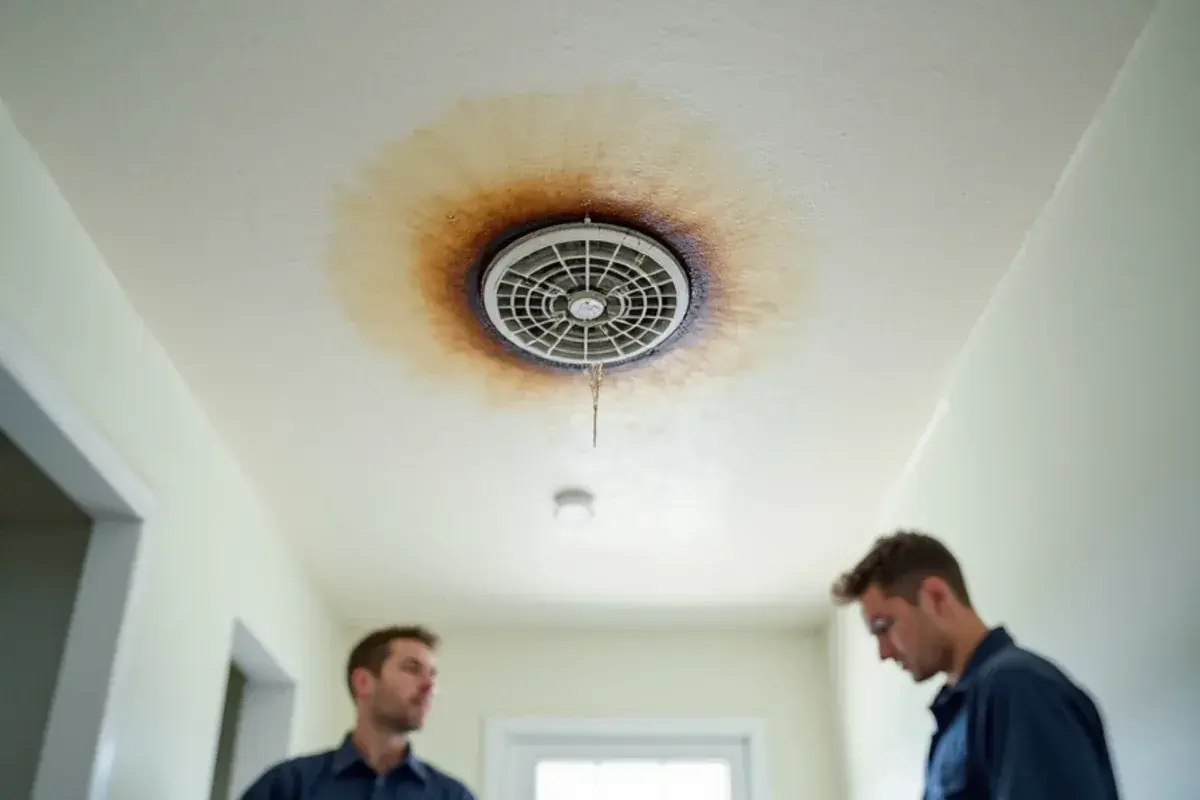

The primary pan sits under the indoor coil. In attic installs a second, larger pan below the whole unit catches overflow. Rusted metal pans and cracked plastic ones leak through, and that leak is invisible until the ceiling stains.

Float switches

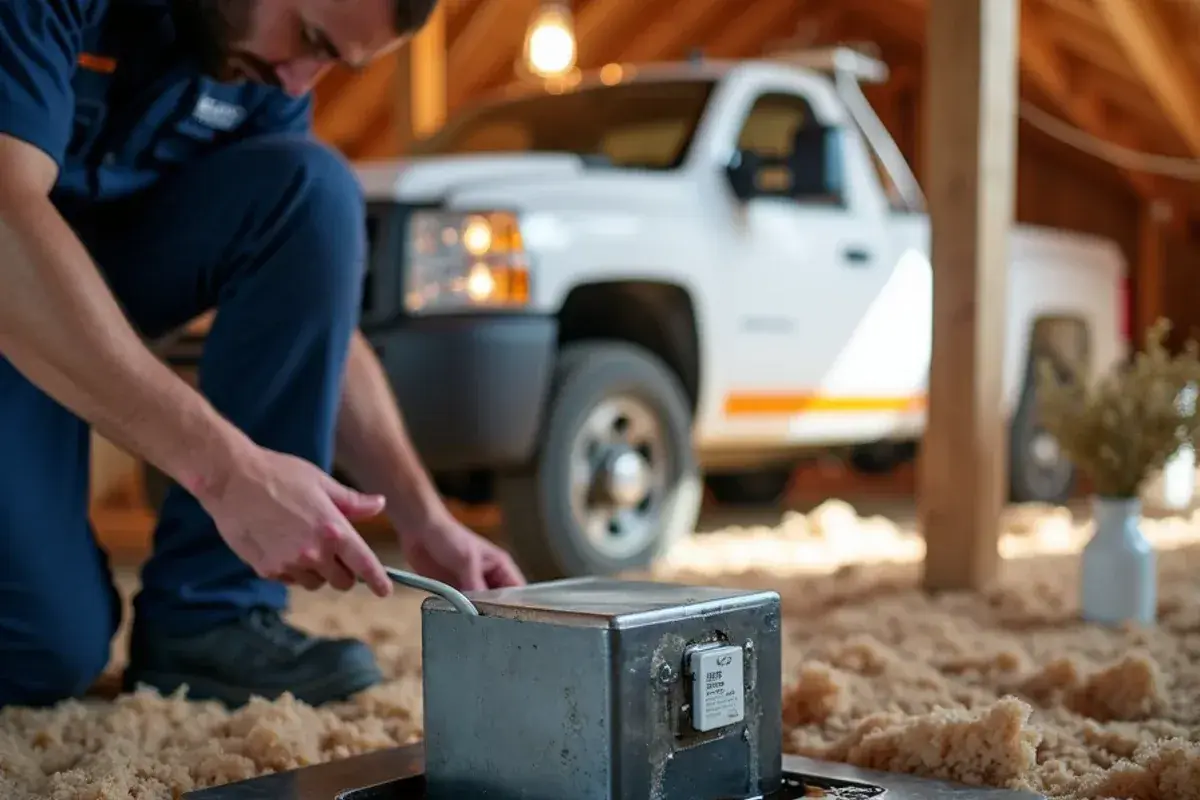

A float switch is a small safety device that shuts off cooling when water rises in the pan or line. If your AC stopped and the pan is full, the switch probably did its job. We check that every system with a risky location has one that works.

Condensate pumps

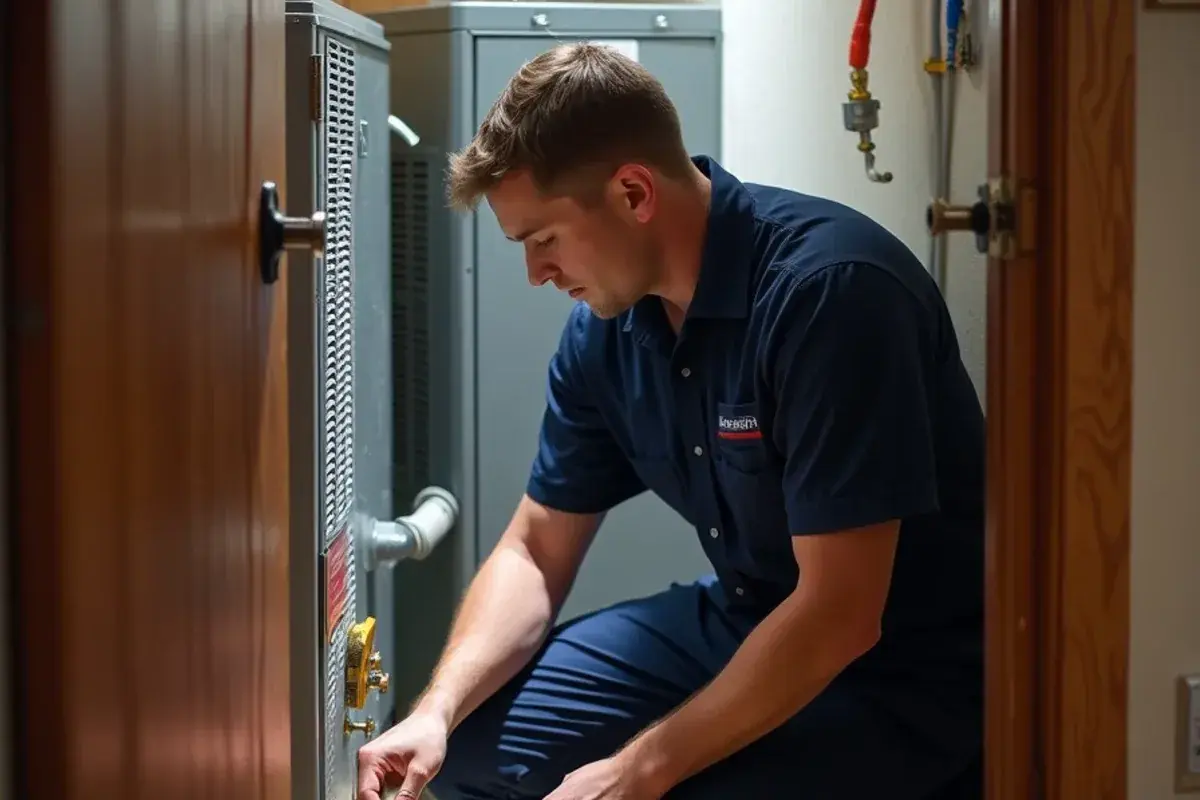

Closets in manufactured homes and interior rooms often lack a downhill path outside, so a small pump lifts the water out. When its float sticks or its motor fails, water overflows quickly.

Mini-split leaking water inside the room?

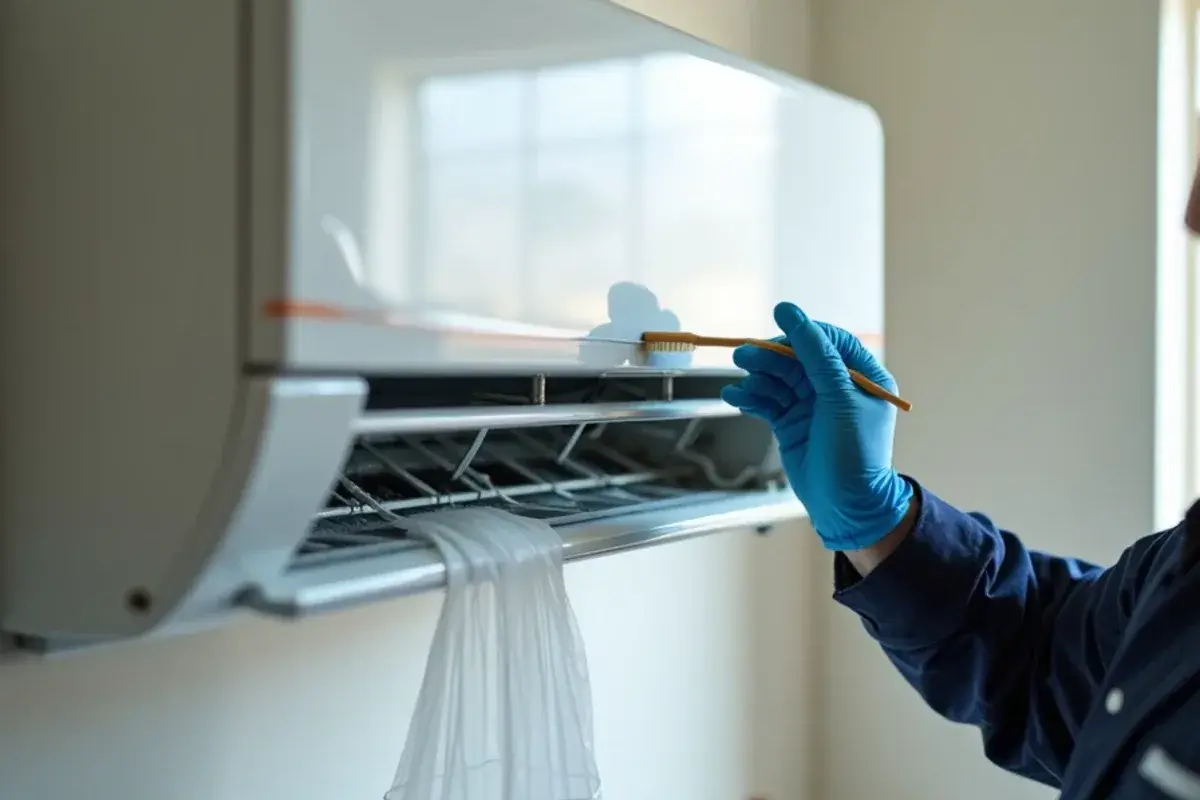

Ductless heads drain through a tray under the coil and a thin hose that runs through the wall with the refrigerant lines. Dust and mold in the tray, a hose pinched behind the head, or a hose that rises before it falls outside will push water out the front. Heads mounted slightly out of level spill from one end.

Often the real fix is a mini-split deep cleaning, where the coil, blower wheel and tray come clean and the hose is checked end to end.

Code rules for overflow protection and drain lines

Drain work follows mechanical code, not just habit. TDLR's air conditioning rules (Texas Administrative Code, Title 16, Chapter 75) define a proper installation by the mechanical codes adopted locally, the International Residential Code where it applies, and the equipment maker's instructions. The International Residential Code, section M1411.3.1, calls for a secondary drain, an auxiliary pan or a float switch on any coil where an overflow or blocked line would damage the building, which is exactly the case for an attic air handler over a ceiling. It also wants an overflow drain to end somewhere you will notice, such as over a window, so a dripping pipe there is a warning to call, not a fix. Ask your city or county which code edition applies before major changes, and check any contractor's licence on the TDLR site.

Drain repair cost factors and a flushing routine

Most clogs are a short visit; the price climbs with what the water reached and what has to be replaced. What changes the cost:

• Whether the unit is in the attic, a closet or outside
• Parts: a new pump, pan or float switch
• How much drain pipe must be re-run or supported
• Opening a mini-split head for full cleaning
• Access around wet ceilings or tight closets
• Replacing a rusted overflow pan, which can mean lifting the air handler in a hot attic
• Fishing a new drain hose through a block wall behind a mini-split head
• Drywall and paint repair after a leak, which our crew can handle as handyman repairs on the same job

To keep water where it belongs, flush the line every couple of months in humid weather, change filters on schedule and keep the outdoor outlet clear. A yearly AC maintenance visit includes checking the drain, pan and float switch. If water damage has started, our general AC repair page lists other faults worth ruling out.
